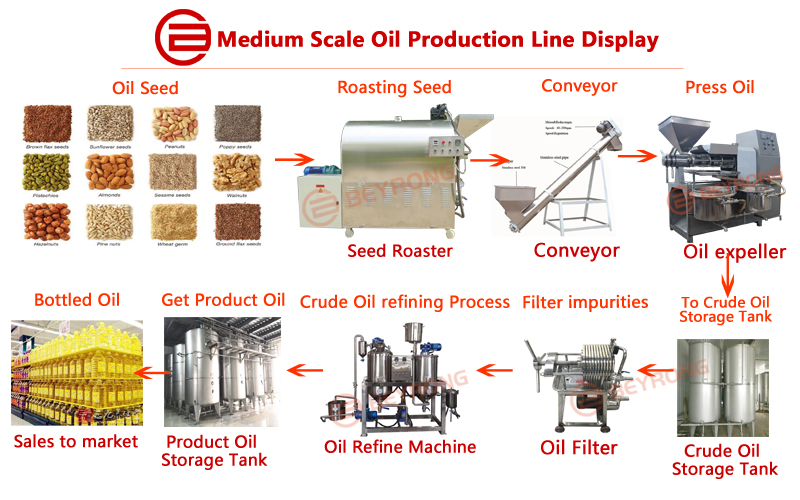

3-5T Oil Production Line


Edible Screw Oil Press Introduction
Automatic Screw Oil Press has a high degree of automation, adopts high pressure vacuum filtering system  and automatic temperature control heating press technology. It is widely used to process rapeseed, cottonseed, sesame, sunflower, grainy oil plant seeds as well as corn germ, etc. into high quality edible oil. Automatic Screw Oil Press can not only press oil but also filter oil by vacuum filtering device that is why Automatic screw oil press can be used widely in small and large scale oil pressing plants

Video of Oil Press


Application of Edible  screw oil press :
automatic oil press is appropriate for many oil bearing materials such as: peanut, soybean, sunflower, rape seed, corn, coconut, olive, etc.
Furthermore, it can be used for both cold pressing and hot pressing. Capacity ranges from 1t/d to 10t/d make that  automatic screw  oil press is suitable both for family use and large plant.





 Product Details Show

edib;e oil press



Oil Press Technical Data
Model Capacity Heating Power Voltage Motor power N.W G.W Overall Size (mm)
BY-70 50-60kg/h 1kw 220V 3kw 280KG 300KG 1400X1200X1200
BY-80 80-100kg/h 2.5kw 380V 5.5kw 630KG 780KG 1600X1300X1550
BY-100 150-200kg/h 3kw 380V 7.5kw 900KG 1100KG 2000X1350X1650
BY-120 250-300kg/h 3kw 380V 11kw 950KG 1150KG 2100X1400X1700
BY-130 300-400kg/h 3kw 380V 18.5kw 1100KG 1200KG 2450X1500X2000
BY-165 450-500kg/h 3kw 380V 30kw 2400KG 2600KG 2550X3000X2330



Details of Seed Roaster edib;e oil press

Video of Seed Roaster

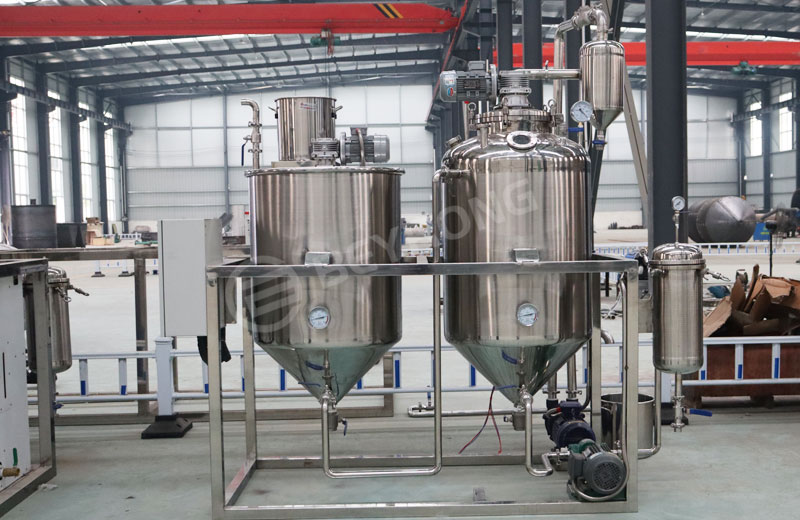

Mini Oil Refine Machine


Video of Mini Refine Machine



Details of Oil Filter Oil filter

Delivery

Product: 3-5T Oil Production Line
